VISAGE 3D

3D scanner of face with line laser and vertical movimentation

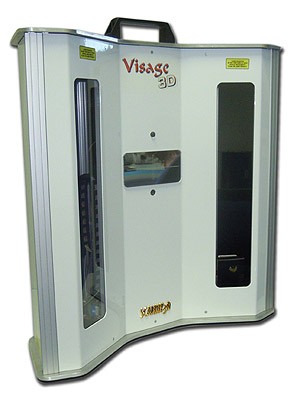

VISAGE 3D device

 FEATURES:
  • Version dedicated to the 3D scanning of face
  • Small dimensions and low weight
  • It does not need maintenance work
  • Easy to use, even by unskilled users
  • Completely automatic and ultra-fast scanning
  • Automatic Calibration Process
  • Customising according to the needs of our customers
  • Contemporary Acquisition of shape and colour (optional) to perform an high fidelity colour 3D model
  • Detection of the main anatomical landmarks of the face
  • Based on a laser technology completely harmless for face and eyes
  • The software issued can be interfaced with the more common CAD-CAM systems
APPLICATIONS:
  • Scanning of face
  • Aesthetics
  • Orthodontics
  • Prosthetic implants
  • Typical medical applications






Technical Datasheet

Scanning area: Up to 500 mm in height
Accuracy: 0.4 mm
Maximum resolution: Minimum scanning step: 0.1 mm
Optical unit: Line laser with vertical movimentation (Z axis) and CCD sensor
Scanning speed: Complete scanning in about 5 sec
Power absorbed: 50 W operating, 1 W in stand-by
PC interface: USB 2.0 / Gigabit Ethernet
External dimensions: 500 (Width) X 230 (Depth) X 530 (Heigh) mm
Weight: 5 Kg
Accessories provided:

Cables, Power supply 110-240v, CD-ROM with software
Options: HD COLOUR scanning

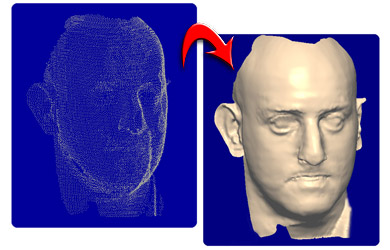

Automatic reconstruction of the surface

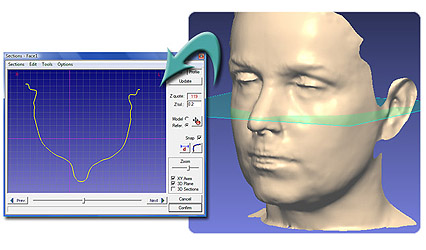

Analysis of the sections of the 3D model



 Click here  to download the technical sheet in PDF.
